Ultrasonic Thickness Gauge: TGX-01

The Starr Instruments TGX-01 is a Portable Ultrasonic Thickness Gauge used to determine the thicknesses of metal, plastic and many other common materials. Unlike traditional methods that might require cutting or damaging the material to measure its thickness, the TGX-01 utilizes advanced ultrasonic pulse-echo technology, making it a non-destructive and non-intrusive measurement tool.

The TGX-01 has the capability to measure the thickness of solid composition materials that have a regular grain structure, of which an ultrasonic signal can be transmitted through.

Some testable materials include:

- Metals (steels, aluminium, copper, cast iron and more)

- Plastics (HDPE, LDPE, PVC)

- Glass

- Rubbers (most types)

* Please note that this tester is NOT suitable for testing epoxy water-proofing membrane thickness.

FEATURES:

• Low and High limit setting with alarm function for go/no-go testing
• 19 Preset material sound velocities for quick and easy use
• Programmable Sound Velocity.
• Integrated reference calibration block.
• Large, clear LCD with switchable backlight.

STANDARD KIT Includes:

• 1 x Thickness Gauge

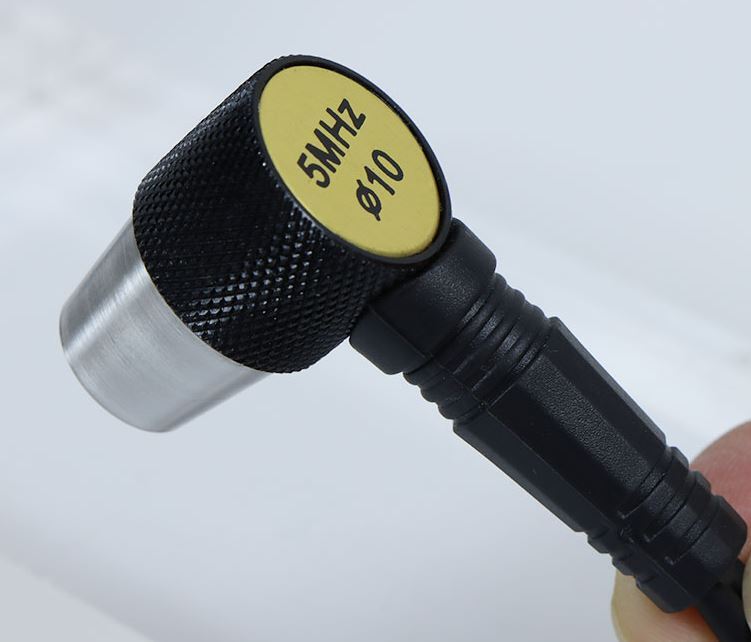

• 1 x 5MHz 10mm Transducer Probe
• 2 x AA Batteries
• 1 x 50ml Ultrasonic Couplant Gel
• 1 x Manufacturers Calibration Certificate
• 1 x User Instruction Manual

COMPLETE KIT also Includes:

• 1 x 4-Step Calibration Block (More Info Here)
• 1 x 250ml Ultrasonic Couplant Gel (More Info Here)

SPECIFICATIONS:
